Legacy Effects Tool

Effects Tool - Classic Tabletop

The Effects Tool will only appear in the toolbar for GMs of a game in Classic Tabletop. Pro level subscribers can use the pre-built Effects Library or create Custom Effects to user in-game.

Custom Effects allow you to create more particle emission patterns than the small number of built-in effects. You can play with the Effects yourself on the Effects Playground.

	Free	Plus	Pro
Effects Tool

Custom Effects Overview - Classic Tabletop

In order to create your own custom Effects, first select the Effects Tool (lightning bolt) from the left toolbar, then select the "[New Custom Effects]" option under the "--Custom Effects--" header. This will open a dialog, much like the Macro dialog, where you can modify all of the different attributes available to the particle system. This info must be in a JSON format, if the format is incorrect it will not let you save your new custom Effects. If you don't know exactly what JSON is you can just be sure to keep the general format of the default and just change the numbers. The default text is for "Burn - Fire", and it has all of the attributes available for creating a new Effect. (minus the onDeath attribute, which will be explained at the end of the table)

Custom Effects Attributes - Classic Tabletop

angle
This is the angle at which the particle are ejected from the spawn point (your cursor). The angle is measured in degrees starting with 0 pointing to the right, so 90 is straight down, 180 is to the left, 270 is straight up. If you enter -1 for this value the system will ask you to "aim" it every time you use it. This is useful when you want to fire an effect in a different direction each time you use it.

angleRandom

How much the particles spread from the original angle to either side. An angleRandom of 45 would result in a 90 degree fire arc centered on the original angle.

duration

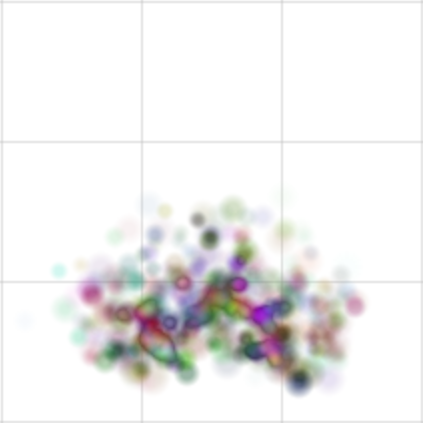

This is how long the effect will last, even if the mouse is held down. This is mostly used with, and required for (if it's not set, or is -1 it will be defaulted to 25), aimed and for onDeath effects, since the mouse can't be held down, so they will last for the duration. The max duration in these instances is 50, which is just about 2 seconds. It can also be useful if you want the effect just to be a single burst of particles, like in the Bomb and Nova effects where the duration is just 10. If you set the duration to -1 the effect will last as long as you hold down the mouse button, otherwise the effect will stop after the duration has finished even if you hold down the button.

emissionRate
This is a measure of how quickly particles are created and fired from the origin. This attribute ties closely with the maxParticles attribute because if that limit is reached the system will stop creating particles, so make sure that you set the max hight enough to support your emission rate.


gravityThis attribute is the only one that has 2 "sub-attributes", x and y. It has these 2 options because you are able to have the "gravity" work in any direction. You cannot use the 0 value for either of these attributes, so use 0.01 for "no gravity". X and Y both accept positive and negative values, a positive Y would pull the particles down where as a negative value would pull the particles up and it works the same way with X and left and right.

lifeSpan
lifeSpan defines how long, in a measure of time, a particle will last before it disappears. This attribute, combined with speed, will decide how far the particle will fly before it is destroyed.

lifeSpanRandom

How much variation there is in the lifespan of individual particles.
If an effect has a lifespan of 10 and a lifeSpanRandom of 5 the particles will be alive for a span of 5-15.

maxParticles
maxParticles defines the total number of particles, for that specific effect, that can be on the board at one time. Once this max is reached the particles will stop being generated until some of already existing particles reach the end of their "life".


size
size defines the relative size of the particles that are created.

sizeRandom

How much variation in size there is in the particles of the effect.
If an effect has a size of 10 and a sizeRandom of 5 the particles will have a size of 5-15.

speed

speed defines the speed at which the particles will move away from the origin.

speedRandom

How much variation in speed there is in the particles of the effect.
If an effect has a speed of 10 and a sizeRandom of 5 the particles will have a speed of 5-15.

startColour / endColour
start/endColour defines the color of the particle when it is created and right before it is destroyed, respectively, using an array [Red, Green, Blue, Alpha]. The colors, RGB, use values between 0-255 and the Alpha channel is a decimal between 0-1. If you're looking for a specific color you can look up "hex color picker" in your favorite search engine and that should give you the numbers you're looking for. The colors will fade from the start value to the end value over the course of their life span. Since all of the particles are piled on top of each other to begin with the colors tend to be much lighter, turning into a ball of white, than you expect so you will want to use darker colors at least in the startColour block. There are a bunch of color examples at the end of this page, if you're looking for inspiration.

startColour / endColour Random

The start and end randoms determine how much difference there is in the color of the particles at the beginning and end of their lifespans. Example:

startColour: [220, 35, 0, 1],
startColourRandom: [62, 0, 0, 0.25]

an effect with these values will range from an RGBA of

[158, 35, 0, 0.75] to
[255, 35, 0, 1]

resulting in a more varied color range for your effect’s particles.

onDeath

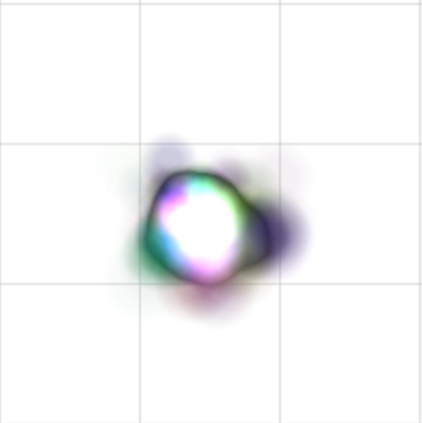

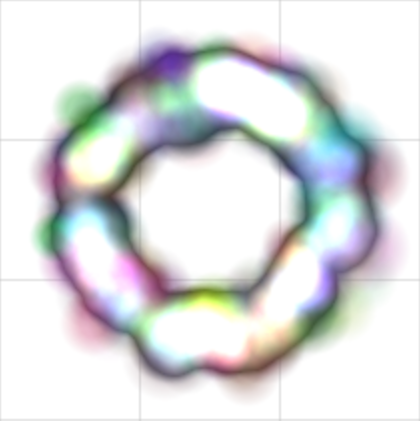

This is the only value that accepts a string, so make sure if you use it to wrap the value in "quotes" or it won't let you save. This is used, like in the Burst effect, to spawn an additional effect as soon as the original one finishes. The Burst effect is basically just the Burn effect with "onDeath": "explosion", so the Burn effect lasts until you let go of the mouse, after which it will spawn the Explosion effect at the same location. This the effect that is spawned in the onDeath sequence cannot be an "aimed" effect and must have a duration. If it has a -1 for either of these it will either be given a default or not work as intended. This also only works for other Custom Effects, if multiple Effects have the same name you are referencing it will only select the first one on the list.

Built-In Colors

Effect	Preview

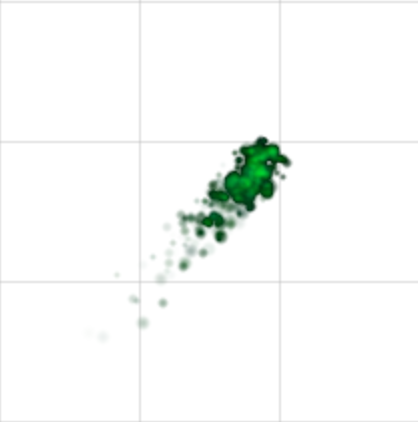

Acid "startColour": [0, 35, 10, 1], "startColourRandom": [0, 10, 10, 0.25], "endColour": [0, 75, 30, 0], "endColourRandom": [0, 20, 20, 0]

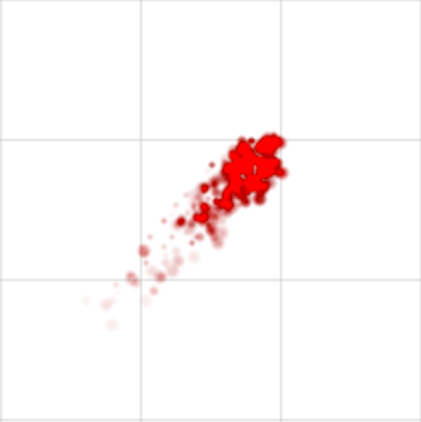

Blood "startColour": [175, 0, 0, 1], "startColourRandom": [20, 0, 0, 0], "endColour": [175, 0, 0, 0], "endColourRandom": [20, 0, 0, 0]

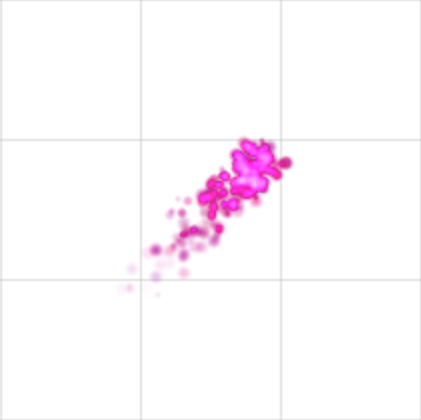

Charm "startColour": [200, 40, 150, 1], "startColourRandom": [25, 5, 20, 0.25], "endColour": [200, 40, 150, 0], "endColourRandom": [50, 10, 40, 0]

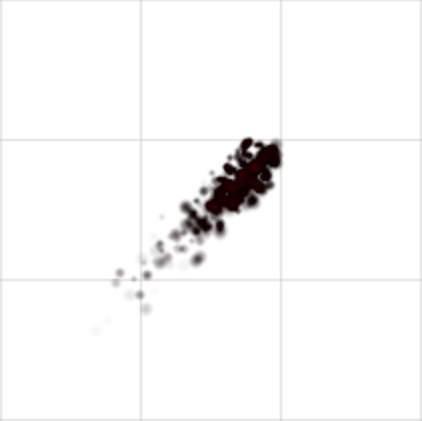

Death "startColour": [10, 0, 0, 1], "startColourRandom": [5, 0, 0, 0.25], "endColour": [20, 0, 0, 0], "endColourRandom": [10, 0, 0, 0]

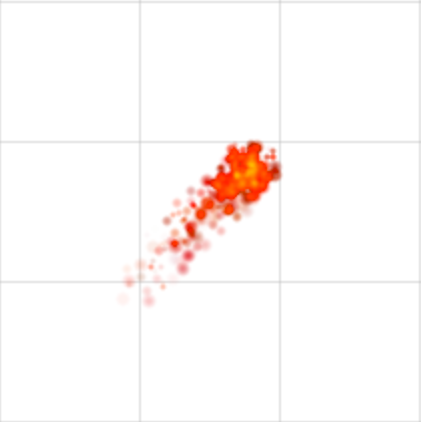

Fire "startColour": [220, 35, 0, 1], "startColourRandom": [62, 0, 0, 0.25], "endColour": [220, 35, 0, 0], "endColourRandom": [60, 60, 60, 0]
Frost "startColour": [90, 90, 175, 1], "startColourRandom": [0, 0, 0, 0.25], "endColour": [125, 125, 255, 0], "endColourRandom": [0, 0, 0, 0]

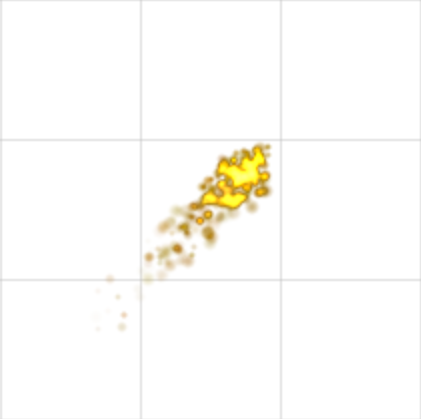

Holy "startColour": [175, 130, 25, 1], "startColourRandom": [20, 10, 0, 0.25], "endColour": [175, 130, 50, 0], "endColourRandom": [20, 20, 20, 0]

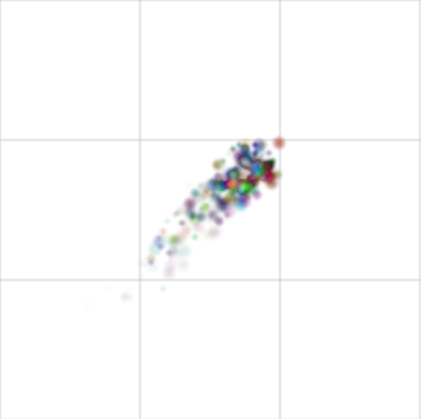

Magic "startColour": [50, 50, 50, 0.5], "startColourRandom": [150, 150, 150, 0.25], "endColour": [128, 128, 128, 0], "endColourRandom": [125, 125, 125, 0]

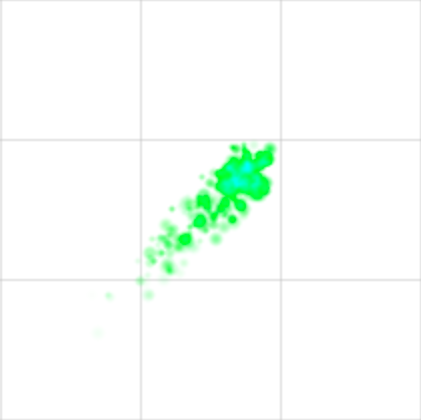

Slime "startColour": [0, 250, 50, 1], "startColourRandom": [0, 20, 10, 0.25], "endColour": [0, 250, 50, 0], "endColourRandom": [20, 20, 20, 0]

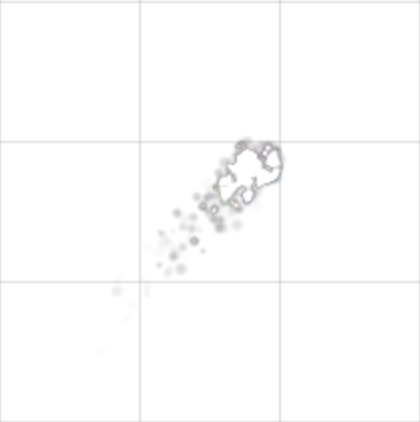

Smoke "startColour": [150, 150, 150, 1], "startColourRandom": [10, 10, 10, 0.5], "endColour": [200, 200, 200, 0], "endColourRandom": [10, 10, 10, 0]

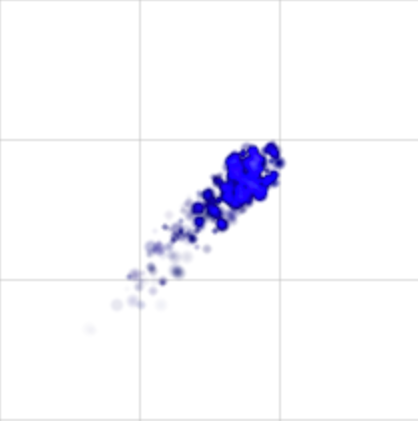

Water "startColour": [15, 15, 150, 1], "startColourRandom": [5, 5, 25, 0.25], "endColour": [10, 10, 100, 0], "endColourRandom": [10, 10, 25, 0]

Effects UserLibrary

Main article: Effects Library

Roll20 users have created many interesting Effects that you can copy. Check out the Effects Library to see what they've come up with!
