Application Interface

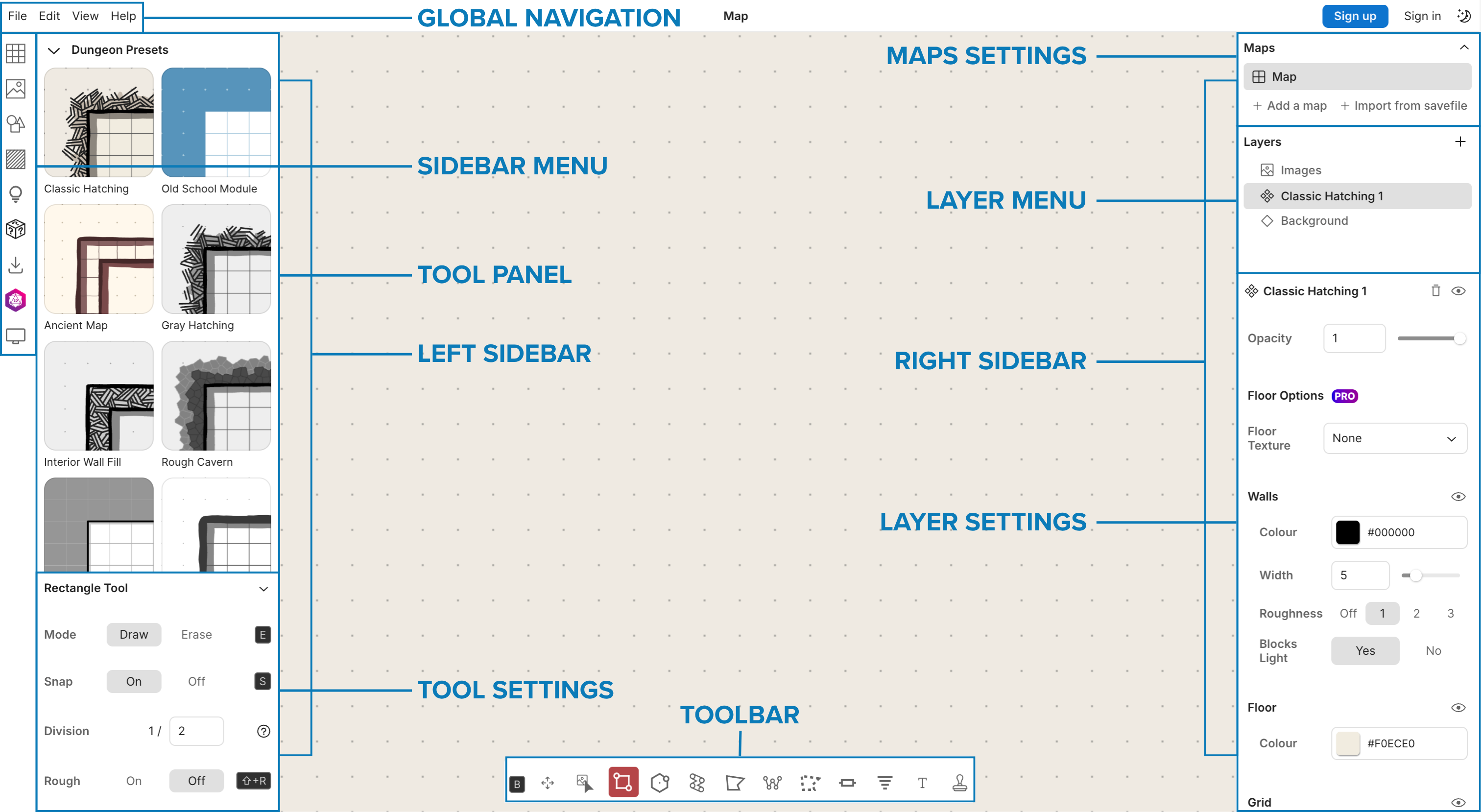

The Dungeon Scrawl interface consists of a left sidebar, a right sidebar, and a central drawing area. A toolbar is located at the bottom center of the page.
The images in this article will help you understand the application's interface and icons.

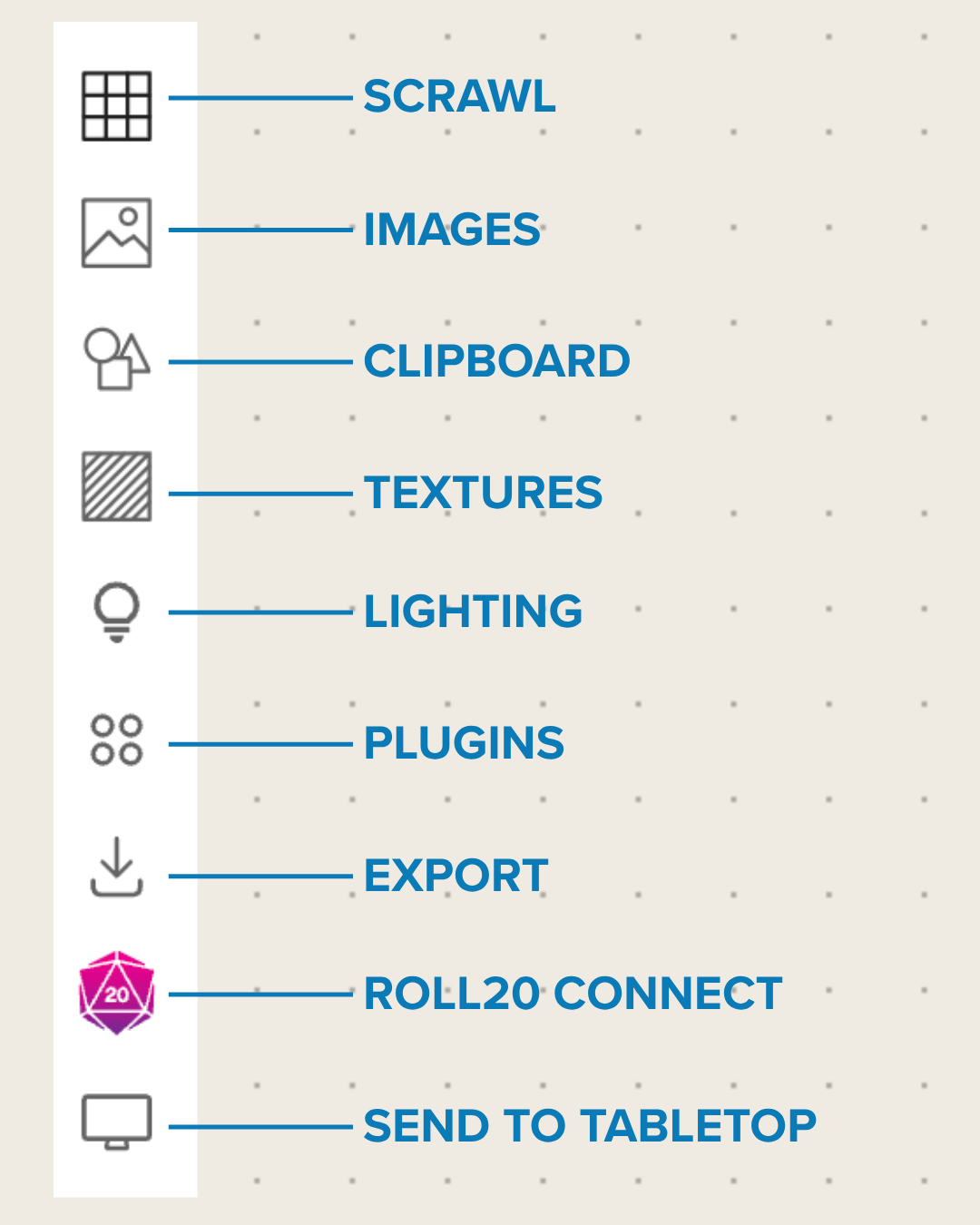

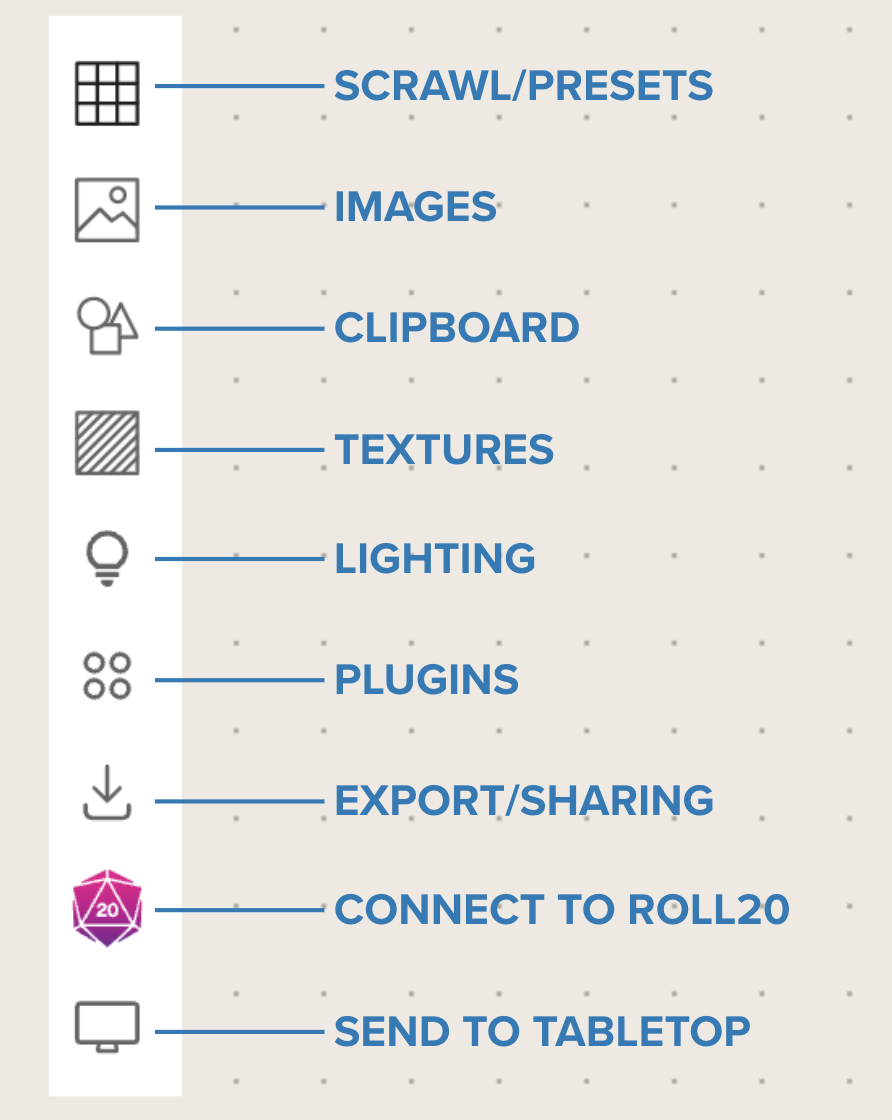

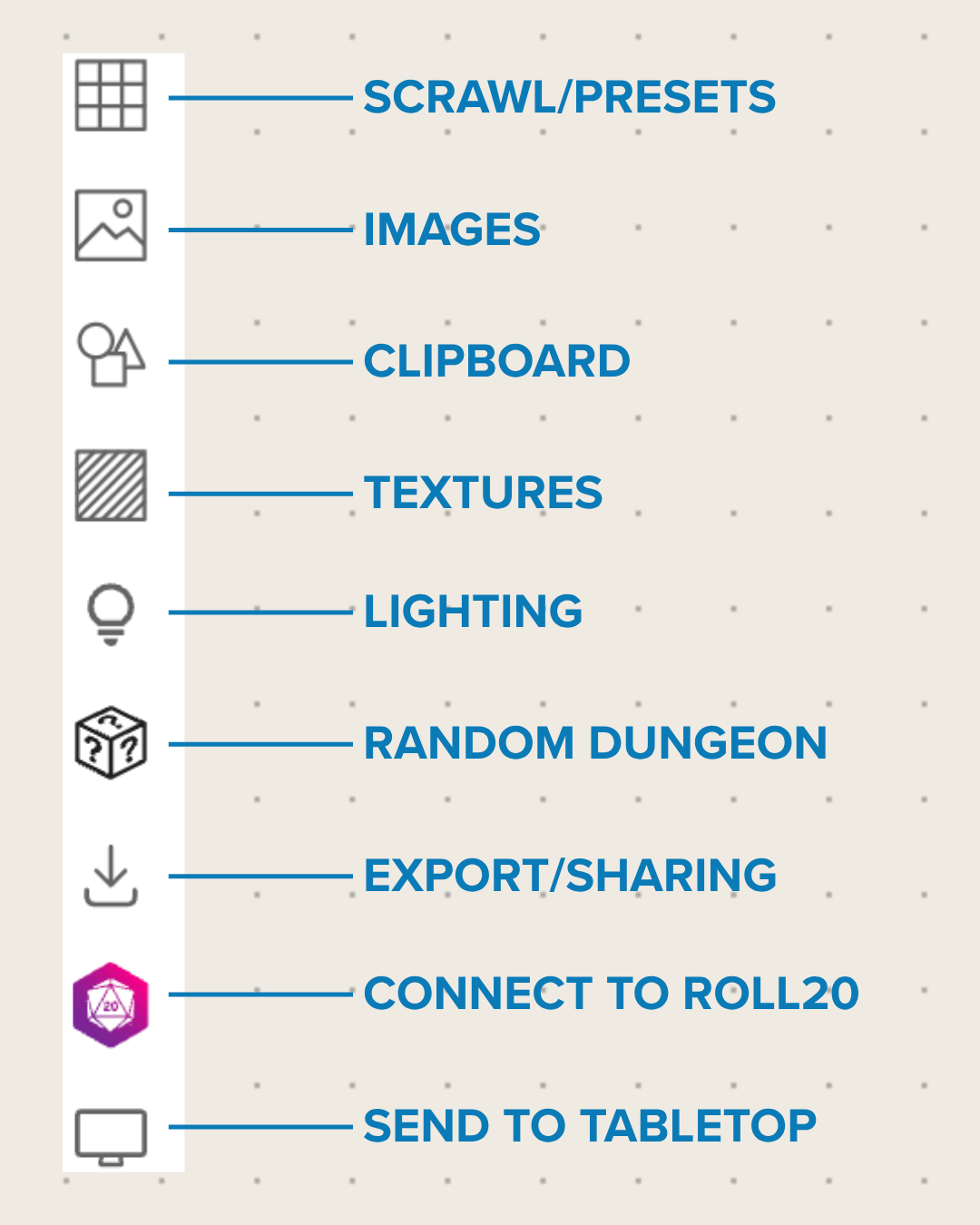

Sidebar Menu Features
The Sidebar Menu houses the main Dungeon Scrawl Features: Scrawl, Images, Clipboard, Textures, Lighting, Plugins, Export, Roll20 Connect, and Send to Tabletop.
Global Navigation Bar
The File Menu provides access to your map library (Dungeon Scrawl Pro), and options to create, open, save, or save a copy of a map. Maps are saved as .ds files.
- The Edit Menu contains options to undo and redo actions.

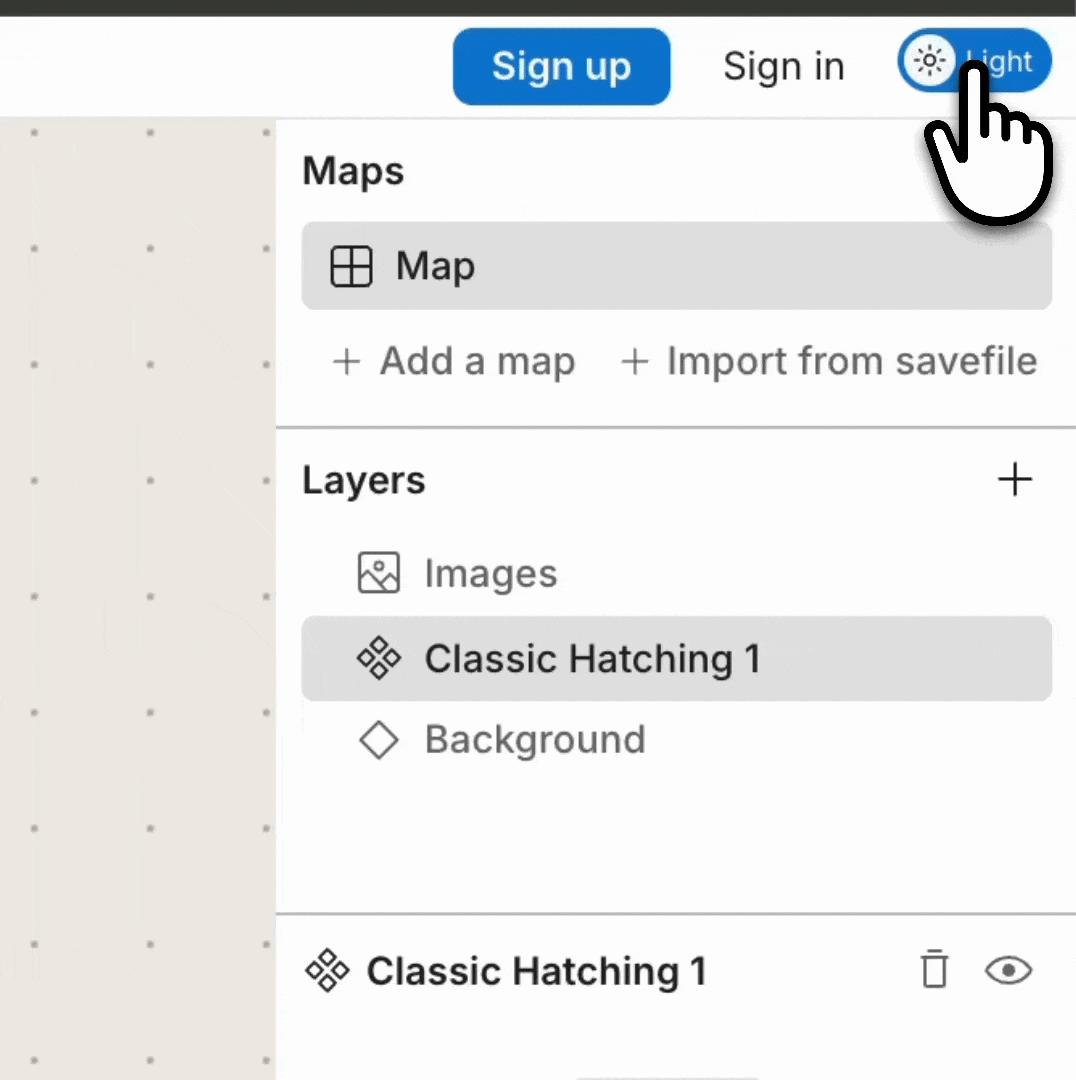

- The View Menu contains options to switch between Light and Dark Mode (Dungeon Scrawl Pro), show or hide the user interface (UI), show or hide all grids, and switch to Isometric view.
- The Help Menu contains links to the Help Center, a support request form, and a feedback form.
Keyboard Shortcuts
| Category | Action | Shortcut |
| File operations | ||
| Save file | ⌘/Ctrl+S | |
| Save as | ⌘/Ctrl+Shift+S | |
| Open file / show library | ⌘/Ctrl+O | |
| History | ||
| Undo | ⌘/Ctrl+Z | |
| Redo | ⌘/Ctrl+Y | |
| Redo (alternative) | ⌘/Ctrl+Shift+Z | |
| View | ||
| Toggle UI visibility | ⌘/Ctrl+\ | |
| Zoom in | = or + | |
| Zoom out | - or _ | |
| Tool selection | ||
| Rectangle tool | R | |
| Regular Polygon tool | C | |
| Line/Wall tool | W | |
| Door tool | D | |
| Text tool | T | |
| Drawing | ||
| Toggle snapping | S | |
| Set snap division | Shift+S → 1–9 | |
| Toggle erase/draw mode | E | |
| Toggle rough/sketchy mode | Shift+R | |
| Remove last drawn point | Z | |
| Decrease path radius / polygon sides / stair steps | [ | |
| Increase path radius / polygon sides / stair steps | ] | |
| Set polygon sides or stair step count | 1–9 | |
| Object manipulation | ||
| Copy selected | ⌘/Ctrl+C | |
| Cut selected | ⌘/Ctrl+X | |
| Paste | ⌘/Ctrl+V | |
| Delete selected | Backspace / Delete | |
| Group / Ungroup selected | G | |
| Send to back | [ | |
| Send to front | ] | |
| Nudge selected objects | ↑ ↓ ← → | |
| Paste mode | ||
| Nudge paste preview | ↑ ↓ ← → | |
| Confirm paste | Enter | |
| Cancel paste / reset tool | Escape | |
| Toolbar Shortcuts | ||
| Object tool | B+2 | |
| Rectangle tool | B+3 | |
| Circle/Regular Polygon tool | B+4 | |
| Path tool | B+5 | |
| Polygon tool | B+6 | |
| Wall tool | B+7 | |
| Select tool | B+8 | |
| Door tool | B+9 | |
| Stairs tool | B+0 | |
| Text tool | B+- | |
